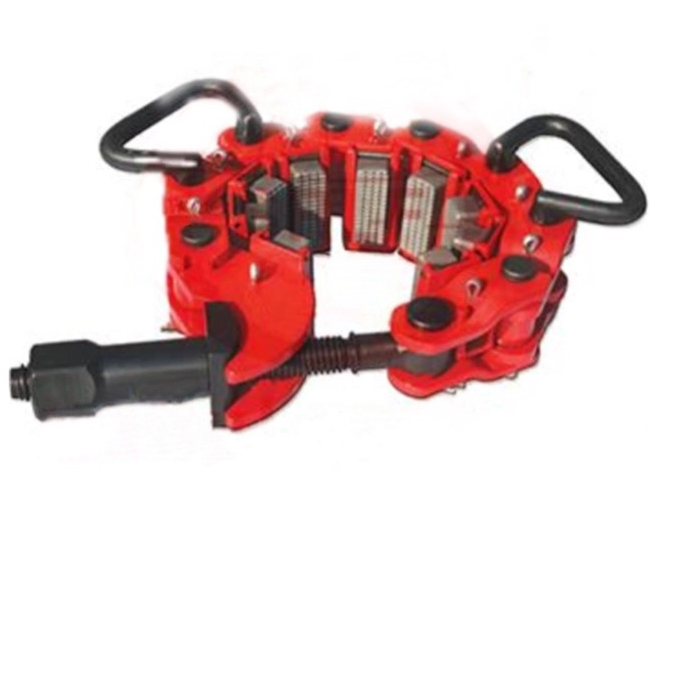

The safety Clamp is necessary tools for handling drill collars, flush joint pipes and small shoulder pipes. They could adjust pipes of different sizes by changing the quantity of chain links. They are designed and manufactured according to API Spec 7K.
model | Size Range (in) | Total Number of links |
MCP-S | 2.7/8-4.1/8 | 7 |
4-5 | 8 |
MCP-R | 4.1/2-5.5/8 | 7 |
5.1/2-7 | 8 |
6.3/4-8.1/4 | 9 |
8-9.1/4 | 10 |
9.1/4-10.1/2 | 11 |
MCP-M | 10.1/2-11.1/2 | 12 |
11.1/2-121/2 | 13 |
12.1/2-13.5/8 | 14 |
13.5/8-14.3/4 | 15 |
14.3/4-15.7/8 | 16 |
MCP-L | 15.7/8-17 | 17 |
17-18.1/2 | 18 |
18.1/8-19.3/8 | 19 |
MP-XL | 19.3/8-20.3/8 | 19 |
20.3/8-21.1/2 | 20 |
21-22.5/8 | 21 |
22.5/8-23.3/4 | 22 |
23.3/4-24.7/8 | 23 |
24.7/8-26 | 24 |
26-27.1/8 | 25 |
29.3/8-301/2 | 28 |
