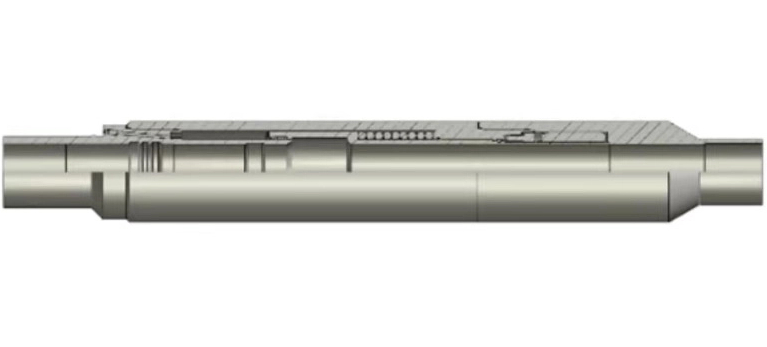

Downhole Safety Valve

Downhole Safety Valve

The downhole safety valve is designed to prevent wellbore fluids flow to surface uncontrollably. The valve will close automatically if the wellhead equipment is damaged in a disaster or other cause. The safety valve is held open by hydraulic control pressure and remains open until the control-line pressure is exhausted.

The rugged hydraulic actuator of the valve isolates the internal workings from well fluids through its unique construction.

The safety valve  has internal profile to allow matched tools to be landed and locked by using standard wireline tools.

FEATURES:

Unique hydraulic actuation (single-piece piston/ flow tube)

Maximized piston area and spring force Pressure rating up to 10,000 psi

Flapper seat incorporates self-equalizing feature to aid in opening Simple, compact design Enhanced debris isolation Internal landing nipple profile.
