Hammer Union

High-pressure pipe connection (hummer union) for the cement truck, fracturing trucks, all kinds of manifolds, pipelines and other high voltage equipment, accessories, transport is an important oil, water, fracturing fluid and mixed fluid. This product is made of high quality forged steel and finished steel with good mechanical properties, sealing performance and different pressure levels, it is the ideal accessory oil drilling operations. Pressure levels have 7MPa ~ 105MPa series, specification models FIG100, FIG200, FIG206, FIG400, FIG602, FIG1002, , FIG1502,series, in the form of a threaded connection, welded, three types of anti-hydrogen sulfide4gas. For easier identification, different pressure levels of union has a different color, and a clear specification of connection and pressure rating marked on the wing nut.

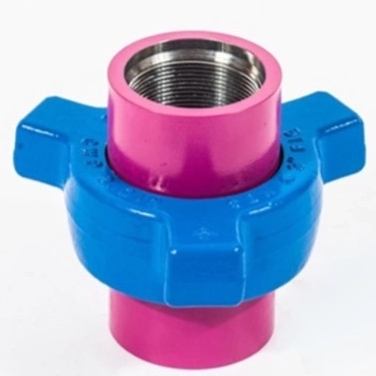

Fig1502:

     1.Union compact structure, widely used in low-voltage kill line, can also be used to require a medium pressure range of air, water, oil or gasoline applications. Available pipeline thread and butt (SCH) connection.

     2.1502 10000PSI NSCWP, test pressure 15000PSI red nut, blue parts,Equipped with  nitrile rubber sealing ring

     3.Can also be customized according to customer needs.
